Hydraulic
Hammers |
 |
|

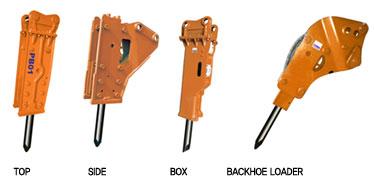

| Standard Bracket Type |
 |
Small & Medium Hydraulic Hammers
Highest Productivity!
Lowest Maintenance!
Durability & Serviceability! |
|
 |
| DESCRIPTION |
Light class |
Medium class |
| Unit |

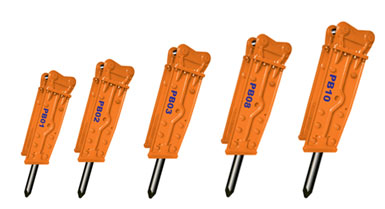

PB01 |
PB02 |
PB03 |

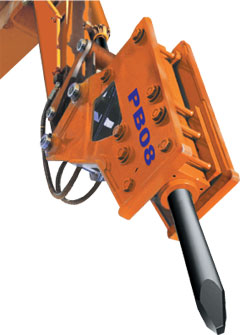

PB08 |
PB10 |
| Impact energy |
JOULES |
550 |
800 |
990 |
4800 |
7500 |
| Blow per min |
B.P.M |
550~1 |
450~1,000 |
50~950 |
320~700 |
300~650 |
| Oil flow rate |
LIT/MIN
(G.P.M) |
28~50(7~13) |
34~60(7~13) |
40~80(10~21) |
120~150(32~40) |
160~230(42~61) |
| Operating weight |
KG (lbs) |
157(346) |
268(590) |
355(782) |
1,620(3,570) |
2,200(4,850) |
| Tool diameter |
mm (in) |
60(2.36) |
70(2.75) |
75(2.95) |
135(5.31) |
150(5.9) |
| Weight of carrier |
TON (lbs) |
1.5~4.0
(2,200~6,600) |
2.5~7.5
(5,500~16,500) |
5.0~9.0
(16,000~19,800) |
21.0~32.0
(46,000~70,000) |
26.0~38.0
(57,000~84,000) |
| Operating oil Bar pressure |
Bar(psi) |
90~120 (1,280~1,700) |
95~130 (1,350~1,900) |
100~140 (1,450~2,030) |
150~180 2,320~2,610) |
160~180
(2,320~2,610) |
| Hose/ Tubing size |
mm(in) |
13(1/2) |
13(1/2 |
13(1/2) |
25(1) |
32(11/4) |
|
